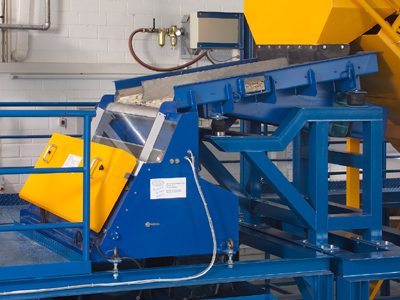

MAG 4400 ME-G

Jan 182011

Sorterar bort alla slags metaller ur ett mixat flöde

MAG 4400 ME-G

Application
profile

Inspection of:	Bulk products

Used in:	Recycling industry

Typical
applications

• removes collars containing lead from container glass cullet
• removes wire-reinforced glass from flat/plate glass cullet
• removes connector pins from crushed lighting tubes and fittings

Product
description

The MAG 4300 series of metal separators, used in glass recycling, removes metal contaminants eg aluminium, steel or lead from glass cullet. The cullet is widened on an external feeder and reaches the glass slide where the pieces are further individualised before continuing into the inspection area of the multi-channel metal detector. If a metal contaminant is detected microprocessors determine its exact location. Electronics evaluate this position and ejection nozzles are activated with pinpoint accuracy and at precisely the right time to blow out the contaminant. The ejection nozzles are so precise that the metal contaminants are removed with very little loss of cullet. The rest of the cullet, free of metal contaminants, then continues along the conveyor.

Advantages

• removes all types of metal, including stainless steel
• removes metal, metal composites and inclusions
• removes contaminants with pinpoint accuracy
• modular design

System
components

Detection Unit:	Multi-segment metal detection coil Segmented single-face metal detector

Control Unit:	Microprocessor-controlled evaluation and user interface

Separation unit:	Segmented air ejection nozzles

Optional features:	Vibratory conveyor VISUTEC real time management information and remote maintenance system

Technical data

Maximum scanning sensitivity Ø Fe-ball:

0,8 mm

Mer info om MAG 4400 ME-G


Produktblad	Serviceavtal	Nyheter	Kontakta oss

Att hitta och separera bort främmande föremål i produkter kan lösas på flera olika sätt.Beskriv era behov så kan vi föreslå en skräddarsydd, komplett lösning.

P-Scan

Runda detektorer No Responses »

Jan 172011

Cirkulära i kombination med styrenhet Primus

Application profile	Inspection of:	Bulk products Liquids and pastes

	Installation in:	Freefall / Bulk conveying Pressure conveying Vacuum conveying Air conveying Pump conveying Bulk material columns
	Used in:	Plastics industry Food industry Chemical industry Pharmaceutical industry Wood industry Recycling industry Other industries
Product description		• Machine protection for mobile granulators, extruders, blow-moulding machines, after dosing units (star feeder, vibration chute) • Quality assurance, e.g. for the outgoing inspection of new materials, granulates, ground materials, regenerated materials. Used before octabins, big-bag stations, driers, and bagging stations P-Scan is a metal detector for installation in pipeline systems, e.g. for free-fall applications, pneumatic conveyor lines, material columns that are slowly moving down, or pump feed lines. The metal detector is used for the inspection of bulk materials, fibres, or liquid/pasty products. It detects all magnetic and non-magnetic metal contaminations (steel, stainless steel, aluminium, …) – even if such contaminations are embedded in the product.
Advantages		• Minimum space required for installation due to extremely reduced metal-free zone (RZ technology) • Can be quickly installed in any position • Stainless steel construction guarantees high mechanical stability and thus interference resistance • Improved interference immunity to electromagnetic pollution and vibrations • High scanning sensitivity for all metals • Product compensation with auto-teach function or manual setting. Product compensation can thus be individually matched to the product (in conventional systems this setting cannot be changed or can only be changed with great difficulties). • Preset operating parameters provide outstanding ease of operation
System components	Detection Unit: Control Unit:	Two-channel metal detection coil with circular aperture PRIMUS microprocessor controller
Technical data	Standard widths (in mm): Protection rating:	40, 50, 60, 70, 80, 100, 120, 150, 200, 250, further sizes on application IP 65
Downloads	Product brochure:	P-Scan-RP-PR-EN-0910-V10.pdf [89 KB]
	Animation:	-


Produktblad	Serviceavtal	Nyheter	Kontakta oss

Att hitta och separera bort främmande föremål i produkter kan lösas på flera olika sätt.Beskriv era behov så kan vi föreslå en skräddarsydd, komplett lösning.

PLASTICON

Tunneldetektorer No Responses »

Jan 172011

Komplett transportör med inbyggd metalldetektor. Transportören är speciellt utvecklad för metalldetektorer för att ge optimal prestanda och en nyckelfärdig störningsfri funktion.
För tunneldetektorer i serien DLS erbjuds PLASTICON-XL och för de underliggande plattdetektorerna ELCON erbjuds PLASTICON-S. Med den robusta konstruktionen är de lämpliga som inmatningsband till granuleringskvarnar och andra bearbetningsmaskiner. Benstöden är höj- och sänkbara i båda ändar för maximal flexibilitet.

Application profile	Inspection of:	Individually packed products (incl packed bulk products)Bulk products

	Installation in:	Conveyor belt line
	Used in:	Plastics industryRecycling industry
Product description		In plastics-processing plants conveyor belts with integrated metal detectors are used for the protection of comminution machines such as cutting mills, shredders, etc..The conveyor belt systems of the PLASTICON series have been specifically designed and built for this purpose. The PLASTICON system inspects piece goods or bulk materials (moulded parts, blow-moulded parts, reject parts, sprues, etc.) for metal contaminations. Lateral guides with brush seals prevent small parts from getting under the conveyor belt. When a metal is detected the conveyor belt is stopped or reversed. Metal detectors of model series ELS, DLS, or GLS can be used depending on the required scanning sensitivity and on the height of the material on the belt.Of course the PLASTICON series also is suitable for similar applications in other branches of industry.
Advantages		■ Detects magnetic and non-magnetic metal contaminations even if such contaminations are enclosed in the product■ Reduces costs caused by machine damage and production losses■ Guarantees product quality■ Protects against complaints■ Amortises in a very short timeCapability characteristics• Special conveyor belt in sturdy, welded steel profile construction designed for the demands of recycling plants• Conveyor belt made according to the latest state-of-the-art in metal detection technology and designed to guarantee a high scanning sensitivity • Highest quality with respect to material and professional workmanship; state-of-the-art metal detection technology guarantees a long, reliable and thus trouble-free operation • Suitable for the installation of S+S tunnel or plate-type detectors • Conveyor belt height-adjustable at the infeed and outfeed side for improved adaptation to local conditions • Complete solution (operation responsibility) from one source • Benefit from the wide experience of a metal detector and conveyor belt manufacturer
System components	Drive :	Drum motor
Technical data	Standard widths (in mm):	-
Downloads	Product brochure:	PLASTICON-PR-EN-1010-V10.pdf [89 KB]
	Animation:	-


Produktblad	Serviceavtal	Nyheter	Kontakta oss

Att hitta och separera bort främmande föremål i produkter kan lösas på flera olika sätt.Beskriv era behov så kan vi föreslå en skräddarsydd, komplett lösning.

OM Överbandsmagnet

Överbandsmagnet No Responses »

Jan 172011

Trumseparator för inbyggnad i befintligt rörsystem

Animation 1

Animation 2

Application profile

Inspection of:	Individually packed products (incl packed bulk products) Bulk products

	Dry, Free-flowing, Non free-flowing (bridging), Powdery, Fine-grained (> 6mm grain size), Coarse-grained (> 6mm grain size), Flaked, Fibrous, Crumbly, Moist, Liquid/paste (constant consistency),

Installation in:	Belt conveyors Conveyor belt line Vibratory conveyor

Used in:	Plastics industry Chemical industry Wood industry Recycling industry Packaging industry Other industries

Product description

Overband magnets are equipped with a strong permanent magnet made of fully stabilised strontium-ferrite. The recirculating belt is powered by an attachable gear motor. Ferrous contaminants are picked up and then removed by the circulating belt.

Advantages

On request this robust unit is also available with hydraulic drive. Guards on both sides prevent injuries and damage to the recirculating belt.

System components

Separation unit:

continuous dust removal by recirculating belt

Mer info om OM överbandsmagnet


Produktblad	Serviceavtal	Nyheter	Kontakta oss

Att hitta och separera bort främmande föremål i produkter kan lösas på flera olika sätt.Beskriv era behov så kan vi föreslå en skräddarsydd, komplett lösning.

TM

Magnetisk trumseparator No Responses »

Jan 172011

Trumseparator montering efter bandtransport

Animation 1

Animation 2

Application
profile

Inspection of:	Bulk products

	Dry, Free-flowing, Non free-flowing (bridging), Powdery, Fine-grained (> 6mm grain size), Coarse-grained (> 6mm grain size), Flaked, Light, Fibrous, Crumbly, Moist,

Installation in:	Freefall / Bulk conveying Belt conveyors Vibratory conveyor

Used in:	Plastics industry Food industry Chemical industry Textile industry Wood industry Recycling industry Packaging industry Other industries

Product
description

The drum magnet is an automated separation system. Ferrous contaminants are attracted to the drum magnet and then rotated out of the magnetic field where they fall off the drum and are separated from clean product by a diverter shield (option).

Advantages

The magnetic field can be adjusted to ensure the best possible separation of contaminants and good material.

System
components

Separation unit:

continuous dust removal by rotating brush

Mer info om TM


Produktblad	Serviceavtal	Nyheter	Kontakta oss

Att hitta och separera bort främmande föremål i produkter kan lösas på flera olika sätt.Beskriv era behov så kan vi föreslå en skräddarsydd, komplett lösning.

WM

Magnetisk drivtrumma No Responses »

Jan 172011

Ersätter befintlig drivtrumma. Mått kan kundanpassas

Animation

Application profile	Inspection of:	Bulk products
		Dry, Powdery, Fine-grained (> 6mm grain size), Coarse-grained (> 6mm grain size), Flaked, Fibrous, Crumbly, Moist,
	Installation in:	Belt conveyors Conveyor belt line
	Used in:	Plastics industry Food industry Chemical industry Textile industry Wood industry Recycling industry Packaging industry Other industries
Product description		Permanent magnetic head rollers are designed to replace the drive roller at the discharge end of belt conveyors. This primary system removes coarse and medium size ferrous contaminants.
Advantages		All types of head roller magnets are available with parallel, crowned or rubber-coated face.
System components	Separation unit:	continuous dust removal by recirculating belt
Technical data	Standard widths (in mm):
Downloads	Product brochure:	WM-PR-EN-0905-V1.0.pdf [81 KB]
	Animation:	Walzenmagnet.SWF [6 KB]


Produktblad	Serviceavtal	Nyheter	Kontakta oss

Att hitta och separera bort främmande föremål i produkter kan lösas på flera olika sätt.Beskriv era behov så kan vi föreslå en skräddarsydd, komplett lösning.

RME

Rörmagnet No Responses »

Jan 142011

Rörmagnet med centrerad elektromagnet

Animation

Application
profile

Inspection of:	Bulk products

	Dry, Free-flowing, Non free-flowing (bridging), Powdery, Fine-grained (> 6mm grain size), Coarse-grained (> 6mm grain size), Flaked, Fibrous, Crumbly,

Installation in:	Freefall / Bulk conveying

Used in:	Plastics industry Chemical industry Wood industry Recycling industry Other industries

Product
description

RME inline magnets are used in pipelines to remove ferrous metals from bulk materials. This type of magnetic separator uses an electro-magnetic field to attract contaminants. Cleaning the RME is very simple; as soon as the air-operated diverter valve is moved to the “Cleaning” position, a plc disconnects the electro-magnetic field and the attracted contaminants fall off.

Advantages

The dimensions of this electro-magnetic inline version have also been carefully calculated to ensure that there is sufficient clearance for good product to flow freely between the magnet core and housing, even when contaminants are on the core.

System
components

Separation unit:

PLC-controlled, preset, automatic cleaning intervals

Technical data

Standard widths (in mm):

80, 100, 120, 150, 200, 250, further sizes on application

Mer info om RME


Produktblad	Serviceavtal	Nyheter	Kontakta oss

Att hitta och separera bort främmande föremål i produkter kan lösas på flera olika sätt.Beskriv era behov så kan vi föreslå en skräddarsydd, komplett lösning.

RM

Rörmagnet No Responses »

Jan 142011

Rörmagnet med centrerad magnetkropp

Animation

Application
profile

Inspection of:	Bulk products

	Dry, Free-flowing, Non free-flowing (bridging), Powdery, Fine-grained (> 6mm grain size), Coarse-grained (> 6mm grain size), Flaked, Fibrous, Crumbly,

Installation in:	Freefall / Bulk conveying

Used in:	Plastics industry Chemical industry Wood industry Recycling industry Packaging industry Other industries

Product
description

RM magnetic separators are designed for use in pipelines to remove ferrous metals from powders and granular bulk materials. The housing as well as the cone top of the core magnet are made of corrosion-resistant stainless steel (1.4301).

Advantages

The dimensions of the unit have been carefully calculated to ensure that there is sufficient clearance for good product to flow freely between the magnet core and housing, even when contaminants are on the core.

System
components

Separation unit:

manual cleaning

Mer info om RM


Produktblad	Serviceavtal	Nyheter	Kontakta oss

Att hitta och separera bort främmande föremål i produkter kan lösas på flera olika sätt.Beskriv era behov så kan vi föreslå en skräddarsydd, komplett lösning.

PRM

Plattmagneter i hus No Responses »

Jan 132011

Fallrörsmagnet med plattmagneter

Animation

Application
profile

Inspection of:	Bulk products

	Dry, Free-flowing, Non free-flowing (bridging), Powdery, Fine-grained (> 6mm grain size), Coarse-grained (> 6mm grain size), Flaked, Fibrous, Crumbly, Moist,

Installation in:	Freefall / Bulk conveying

Used in:	Plastics industry Food industry Chemical industry Textile industry Wood industry Recycling industry Packaging industry Other industries

Product
description

These inline chute magnets are predominantly used for removing ferrous contaminants from fibrous products and materials that do not flow particularly easily and have a tendency to bridge. They are very effective even at high throughput speeds and in pressure conveyor systems.

Advantages

EASY CLEAN technology: Hinged stainless steel plates for fast and easy metal contaminant removal.

System
components

Separation unit:

manual cleaning

Technical data

Standard widths (in mm):

80, 100, 120, 150, 200, 250, further sizes on applicatio

Mer info om PRM


Produktblad	Serviceavtal	Nyheter	Kontakta oss

Att hitta och separera bort främmande föremål i produkter kan lösas på flera olika sätt.Beskriv era behov så kan vi föreslå en skräddarsydd, komplett lösning.

PM

Plattmagneter No Responses »

Jan 132011

Plattmagneter för inbyggnad över ett materialflöde, i ett stup eller ett rörsystem.

Animation 1

Animation 2

Application
profile

Inspection of:	Individually packed products (incl packed bulk products) Bulk products Web, woven or sheet materials

	Dry, Free-flowing, Non free-flowing (bridging), Powdery, Fine-grained (> 6mm grain size), Coarse-grained (> 6mm grain size), Flaked, Light, Fibrous, Crumbly, Moist,

Installation in:	Belt conveyors Conveyor belt line Sliding Vibratory conveyor

Used in:	Plastics industry Food industry Chemical industry Pharmaceutical industry Textile industry Wood industry Recycling industry Packaging industry Other industries

Product
description

Plate magnets are installed above conveying lines, in free fall, in vertical or inclined pipeline systems, and under slides and slipways, to inspect a continuous flow of material.

Advantages

To prevent damage and for easier cleaning all plate magnets are housed in a stainless steel casing.

System
components

Separation unit:

manual cleaning

Mer info om PM


Produktblad	Serviceavtal	Nyheter	Kontakta oss

Att hitta och separera bort främmande föremål i produkter kan lösas på flera olika sätt.Beskriv era behov så kan vi föreslå en skräddarsydd, komplett lösning.
